MWA

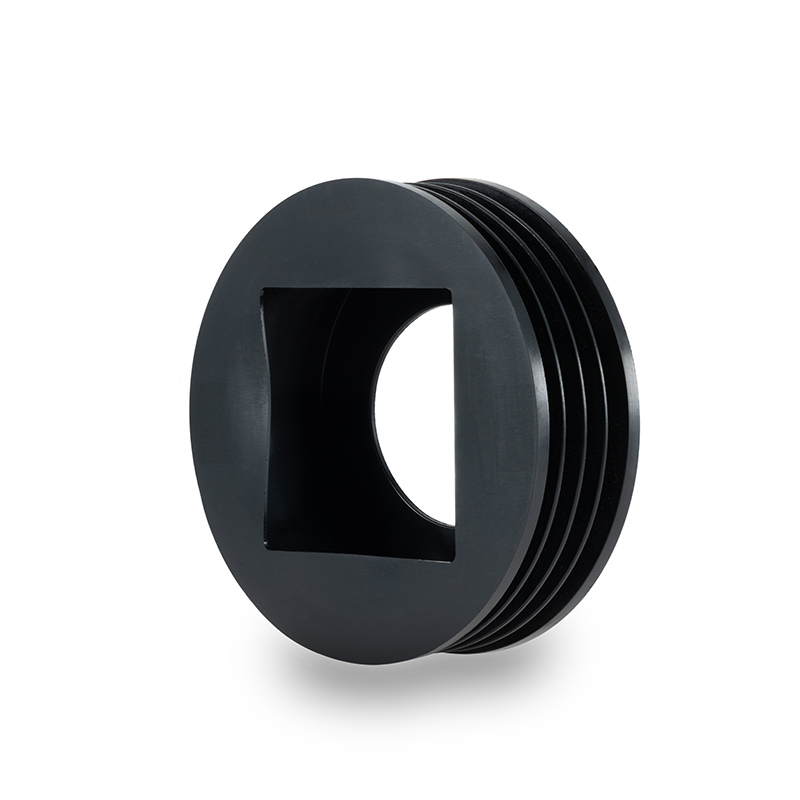

Rainwater Adaptor

Internal Pipe connection
Pusing in to 4“ Pipe
Suitable for 68mm Round and Square PVC
Easy to install

The Mission Rubber Rainwater Adaptor will accept 65mm square and 68mm round downpipe. External rainwater downpipes can be connected directly to a surface water drain or, depending on the design, via a gully trap to the underground drainage system.

PHONE Sales & Technical-Team
+44 114 257 0040

Technical Specification

Manufacturer:

MISSION RUBBER (UK) Ltd., Sheffield, S35 9TG, T +44 (0) 114 257 - 0040

Pressure Tightness:

0.5 bar water / -0.3 bar vacuum

Sealing Material:

EPDM rubber according to BS EN 681-1

Temperature Resistance:

-40°C to +120°C, temporary max. temperature +160°C

Standard/Approval:

BS EN 681-1

RAINWATER ADAPTOR

Reference	Size A (mm)	Size B (mm)	resistant to (bar)
MWA 096	100	65-68	0.5

DIN EN 681-1
DIN EN 295-4
