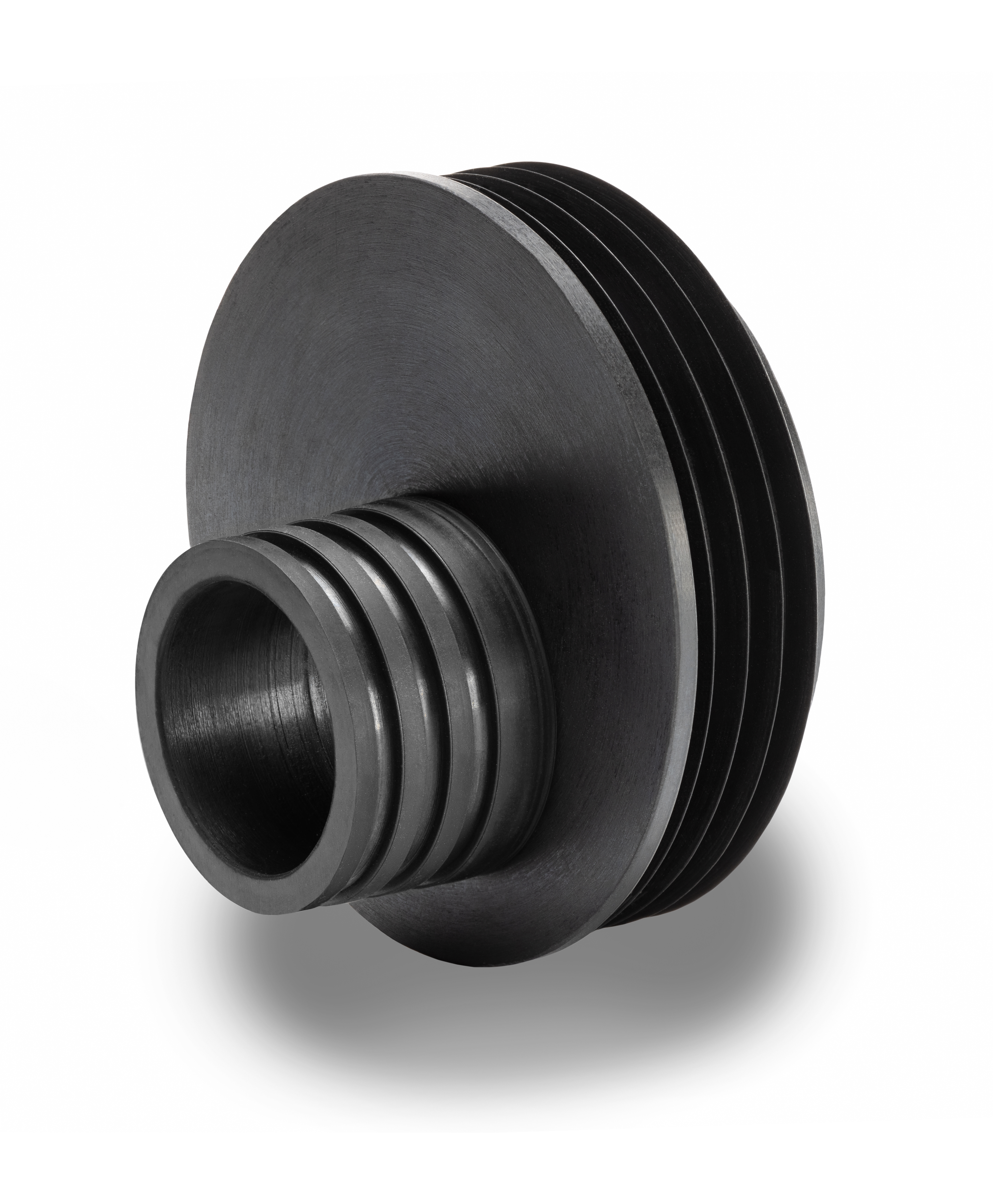

Internal Drain Connector MRS


MRS

Internal Drain Connector MRS

  • For different nominal sizes
  • Internal seal
  • Resistant to 0.5 bar
  • Easy & Quick installation

Internal Drain Connector - for the internal connection of pipes with different dimensions.

The internal drain connector is suitable for flush mounting as well as for exposed pipe connections. The MRS is made of a high-quality EPDM sealing material, which is characterized by durability and has a noise-reducing effect in downpipes.

PHONE Sales & Technical-Team
+44 114 257 0040
Description
Internal Drain Connector MRS
Technical Specification

Internal Drain Connector - for the internal connection of pipes with different dimensions.

Manufacturer:

MISSION RUBBER (UK) Ltd., Sheffield, S35 9TG, T +44 (0) 114 257 - 0040

Pressure Tightness:

0.5 bar water / -0.3 bar vacuum

Sealing Material:

EPDM rubber according to BS EN 681-1

Temperature Resistance:

-40°C to +120°C, temporary max. temperature +160°C

Standard/Approval:

BS EN 681-1
Internal Drain Connector MRS
Article NumberReferenceA
Size Range
(mm)		B
Sizes Range
(mm)		L
Length
(mm)		Resistant to
(bar)		Weight
(kg)
500130Internal Drain Connector MRS 110 | 50/4050/4098 - 10533 (66)0.50.2
500131Internal Drain Connector MRS 110 | 90/7590/7598 - 10533 (66)0.50.1
500142Internal Drain Connector MRS 75/505068 - 73330.50.1
500143Internal Drain Connector MRS 125/110110117 - 119340.50.1
500144Internal Drain Connector MRS 160/110110148 - 153340.50.3
  • Position pipe ends.
    Position pipe ends.
  • Fold in or cut off internal drain connector at the desired position, depending on the connection situation.
    Fold in or cut off internal drain connector at the desired position, depending on the connection situation.
  • Insert internal drain connector into larger pipe, apply lubricant and push in smaller pipe.
    Insert internal drain connector into larger pipe, apply lubricant and push in smaller pipe.
