Multi-Flexible-Coupling GENIUS


Multi-Flexible-Coupling GENIUS

  • One coupling for all pipe materials
  • For above and below ground
  • With integrated bushes
  • Resistant to 2.5 bar

Multi-Flexible-Coupling GENIUS – for the connection of all pipe systems with different or same outside diameters

The Multi-Flexible-Coupling GENIUS with integrated bushes joints all plain ended pipes within one dimension and can be used inside and outside of buildings.

The right solution always to hand: What ever pipe material needs to be jointed within one dimension, the GENIUS will always be the right solution for the contractor.

PHONE Sales & Technical-Team
+44 114 257 0040
Description
Multi-Flexible-Coupling GENIUS
Technical Specification

Multi-Flexible-Coupling GENIUS with integrated bushes for the connection of plain ended pipe materials within one dimension with different or same outside diameters.

Manufacturer:

MISSION RUBBER (UK) Ltd., Sheffield, S35 9TG, T +44 (0) 114 257 - 0040

Pressure Tightness:

2.5 bar wasser / - 0.3 bar vacuum

Jetting Resistance:

120 bar

Corrosion Resistance:

TOX-Technology

Sealing Material:

EPDM or Nitrile (NBR) rubber with lock in place profile according to BS EN 681-1

Stainless Steel:

AISI 304/1.4301, alternatively AISI 316/1.4404 according to BS EN 10088-2

Temperature Resistance:

-40°C to +120°C, temporary max. temperature +160°C

Standard/Approval:

BS EN 16397-2, CE16

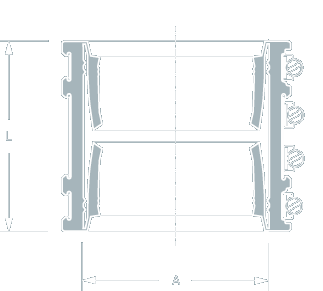

MULTI-FLEXIBLE-COUPLING GENIUS
Article NumberReferenceA
Size Range
(mm)
L
Length
(mm)
resistant to
(bar)
NmWeight
(kg)
500071GENIUS DN 100108-1371202,5101,3
500072GENIUS DN 125123-1621202,5101,5
500073GENIUS DN 150158-1921502,5102,4
  • Bush at smaller pipe remains integrated – fold out and remove bush at larger pipe.
    Bush at smaller pipe remains integrated – fold out and remove bush at larger pipe.
  • Slide GENIUS over larger pipe.
    Slide GENIUS over larger pipe.
  • Push smaller pipe into GENIUS and tighten clamps and shear band reciprocally.
    Push smaller pipe into GENIUS and tighten clamps and shear band reciprocally.

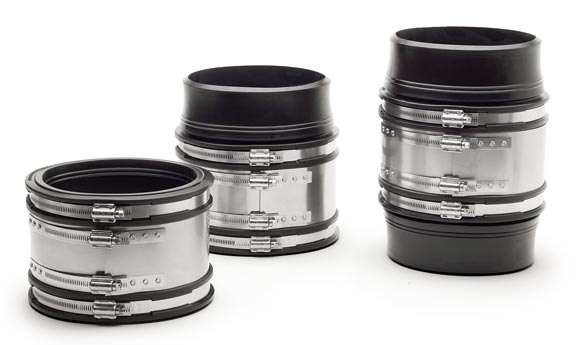

multikupplung genius xl
