BML-Connector


BML-Connector

  • For bridge drainage
  • Reinforced clamps
  • AISI 316 stainless steel
  • Ozone resistant EPDM rubber

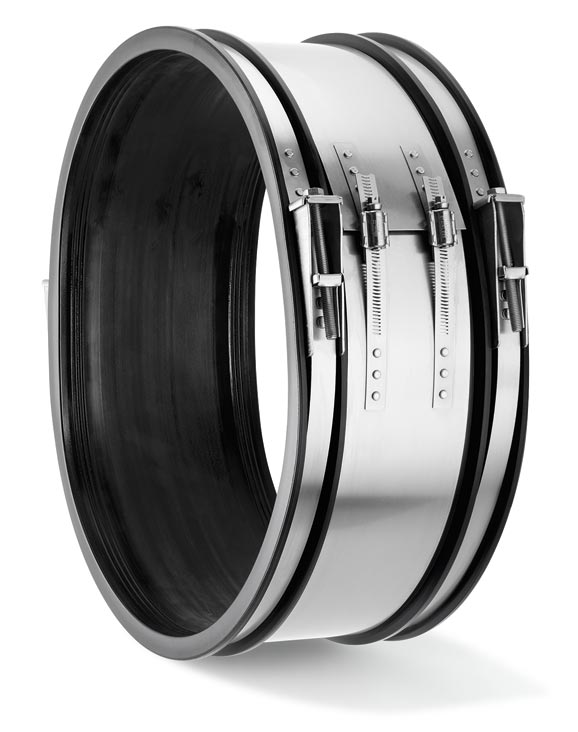

BML-Connector – for connecting bridge drainage pipes within same dimension

The BML-Connector is fitted with reinforced clamps. Linear expansion through temperature variation and vibrations of the bridge can be compensated.

An angular deflection of up to 3% allows installations for curved bridges, too. The ozone resistant EPDM rubber guarantees a durable tightening.

The BML-Connector can also be supplied in nitrile (NBR) rubber to offer resistance against oil and petrol. The used materials are resistant against road salt and exhaust fumes.

PHONE Sales & Technical-Team
+44 114 257 0040
Description
BML-Connector
Technical Specification

BML-Connector for connecting bridge drainage pipes made from cast iron, GRP or stainless steel.

Manufacturer:

MISSION RUBBER (UK) Ltd., Sheffield, S35 9TG, T +44 (0) 114 257 - 0040

Pressure Tightness:

2.5 bar wasser / -0.3 bar vakuum

Jetting Resistance:

120 bar

Corrosion Resistance:

TOX-Technology

Sealing Material:

EPDM or Nitrile (NBR) rubber with lock in place profile according to BS EN 681-1

Stainless Steel:

AISI 304/1.4301, alternatively AISI 316/1.4404 according to BS EN 10088-2

Temperature Resistance:

-40°C to +120°C, temporary max. temperature +160°C

Standard/Approval:

BS EN 16397-2, CE15

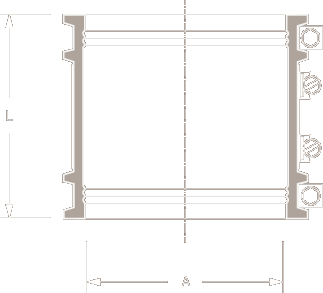

BML-Connector
Article NumberReferenceA
Size Range
(mm)
L
Length
(mm)
resistant to
(bar)
NmWeight
(kg)
81000400BML-Connector DN 400400-4301902,5206,1
81000500BML-Connector DN 500515-5451902,5207,4
81000600BML-Connector DN 600620-6451902,5208,8
  • Position plain ended pipes.
    Position plain ended pipes.
  • Slide coupling over one plain end.
    Slide coupling over one plain end.
  • Center coupling over joint. Tighten clamps and shear band reciprocally.
    Center coupling over joint. Tighten clamps and shear band reciprocally.
