Drain Connector MAS


MAS

Drain Connector MAS

  • For connection of SMU to plastic pipes
  • Internal seal
  • Resistant to 0.5 bar
  • Easy & Quick installation

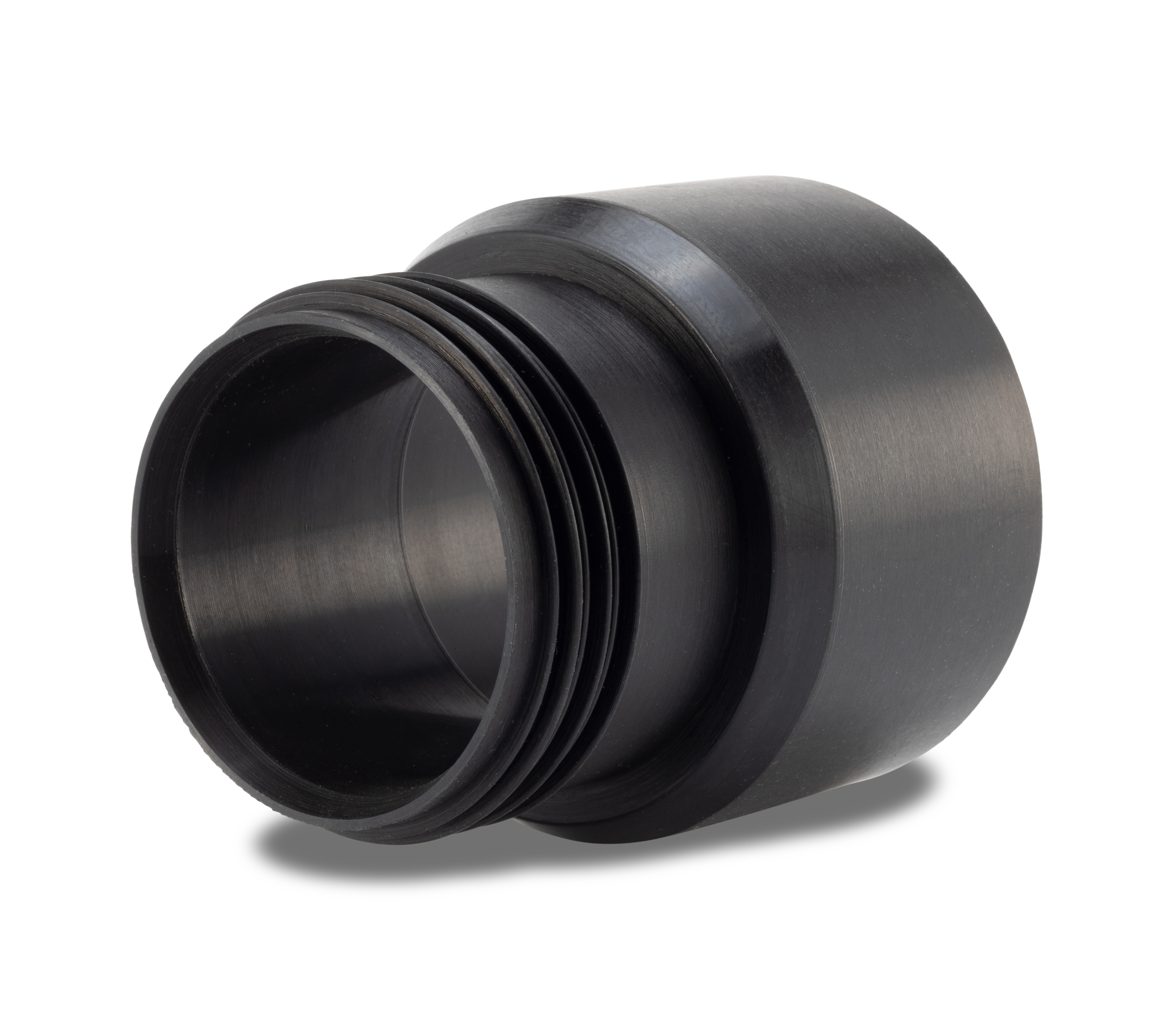

Drain connector MAS - for internal connection of SML pipes to plastic pipes.

The connector is made of a high-quality EPDM sealing material, which is characterised by durability and has a noise-reducing effect in downpipes.

It is suitable for flush mounting as well as for use with exposed pipe connections.

PHONE Sales & Technical-Team
+44 114 257 0040
Description
Drain Connector MAS
Technical Specification

DESCRIPTIONTECHNICAL SPECIFICATIONDrain connector MAS - for internal connection of SML pipes to plastic pipes.

Manufacturer:

MISSION RUBBER (UK) Ltd., Sheffield, S35 9TG, T +44 (0) 114 257 - 0040

Pressure Tightness:

0.5 bar water / -0.3 bar vacuum

Sealing Material:

EPDM rubber according to BS EN 681-1

Temperature Resistance:

-40°C to +120°C, temporary max. temperature +160°C

Standard/Approval:

BS EN 681-1
DRAIN CONNECTOR MAS
Article NumberReferenceA Size Range (mm)B Size Range (mm)L Length (mm)Weight (kg)
500127Drain Connector MAS, DN 5050 +0,3/-058 +2/-1920.15
500128Drain Connector MAS, DN 7075 +0,4/-078 +2/-11030.25
500129Drain Connector MAS, DN 100110 +0,4/-0110 +2/-11160.40
  • Position pipe ends.
    Position pipe ends.
  • Press the drain connector into the plastic socket as far as it will go. Lip seal in plastic socket does not need to be removed.
    Press the drain connector into the plastic socket as far as it will go. Lip seal in plastic socket does not need to be removed.
  • Push the SMU-pipe into the drain connector.
    Push the SMU-pipe into the drain connector.
