Drainage Coupling MDC


Drainage Coupling MDC

  • Coupling for same outside diameters
  • For above and below ground
  • Reliable and durable solution
  • Resistant to 0.6 bar

Drainage Coupling MDC – for the connection of all pipe systems with same outside diameters

The Drainage Coupling MDC connects all plain ended pipes with same outside diameters and materials.

The Drainage Coupling MDC can be used for applications above and below ground as well as inside and outside of buildings.

PHONE Sales & Technical-Team
+44 114 257 0040
Description
Drainage Coupling MDC
Technical Specification

Drainage Coupling MDC for the connection of all plain ended pipe systems with same outside diameters for applications above and below ground as well as inside and outside of buildings.

Manufacturer:

MISSION RUBBER (UK) Ltd., Sheffield, S35 9TG, T +44 (0) 114 257 - 0040

Pressure Tightness:

0.6 bar wasser / -0.3 vakuum

Jetting Resistance:

120 bar

Sealing Material:

EPDM or Nitrile (NBR) rubber with lock in place profile according to BS EN 681-1

Stainless Steel:

AISI 304/1.4301, alternatively AISI 316/1.4404 according to BS EN 10088-2

Temperature Resistance:

-40°C to +120°C, temporary max. temperature +160°C

Standard/Approval:

BS EN 16397-2, CE15
DRAINAGE COUPLING MDC

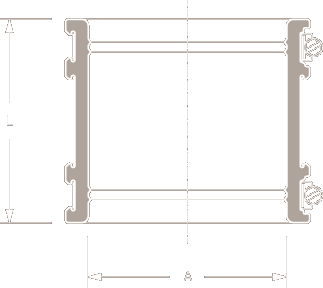

Article NumberReferenceASize Range(mm)LLength(mm)resistant to(bar) NmWeight(kg)
76381190MDC 3224 -32650.630.1
76381195MDC 4032 - 40650.630.1
76381200MDC 5042 - 50650.630.1
76381205MDC 5650 - 56700.630.1
76381947MDC 6555 - 65900.630.2
76381952MDC 7565 - 75900.630.3
76033021MDC 8975 - 891000.660.4
76381955MDC 10085 - 1001000.660.4
76481958MDC 115100 - 1151200.660.4
76481959MDC 120105 - 1201200.660.4
76481960MDC 137120 - 1371200.660.4
76481961MDC 150125 - 1501200.660.5
76481962MDC 162137 - 1621200.660.5
76481964MDC 175150 - 1751200.660.6
76481966MDC 190165 - 1901500.660.6
76481978MDC 200175 - 2001500.660.6
76481980MDC 212187 - 2121500.660.6
76481982MDC 225200 - 2251500.660.7
76481983MDC 250225 - 2501500.660.7
76481984MDC 275250 - 2751500.660.8
76481290MDC 290265 - 2901500.660.9
  • Position plain ended pipes.
    Position plain ended pipes.
  • Slide coupling over one plain end.
    Slide coupling over one plain end.
  • Center coupling over joint. Tighten clamps.
    Center coupling over joint. Tighten clamps.

kupplung mdc 01 3d
